Description

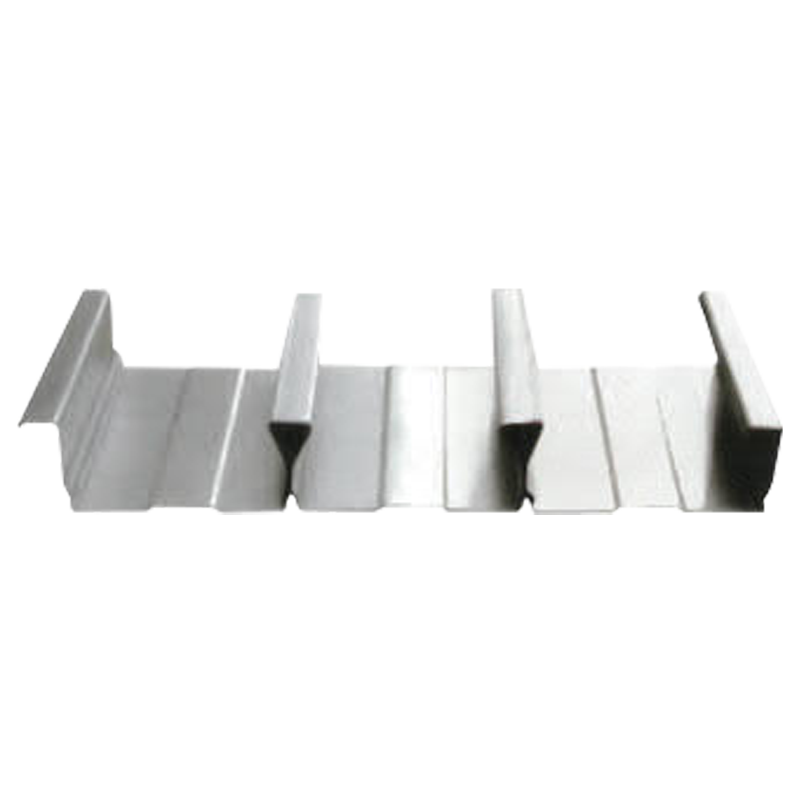

YXB 50-200-600 Closed-type floor structure panel is a commonly used profiled load-bearing component in steel structure floor systems. Utilizing a closed-section forming process, it boasts stable structural adaptability and standardized installation performance. Made from hot-dip galvanized steel sheet, the YXB 50-200-600 Closed-type floor structure panel is roll-formed into a standard panel with a rib height of 50mm, a wave pitch of 200mm, and an effective coverage width of 600mm. It can work in conjunction with concrete to enhance the overall stiffness and shear resistance of the floor slab, reducing the amount of cast-in-place steel reinforcement. The YXB 50-200-600 Closed-type floor structure panel features a slotted lap joint structure, reducing the risk of grout leakage during pouring. Its flat bottom facilitates pipeline laying and subsequent decorative construction, making it suitable for industrial plants, commercial complexes, high-rise steel structure buildings, logistics warehouses, and floor additions.
Contact
Parameters
Inquiry
| Thickness(mm) | Moment ot inertia(cm4/m) | Section of modulus(cm3/m) |
| 0.8 | 52.4 | 24.2 |
| 1 | 64.8 | 31.3 |
| 1.2 | 75.8 | 34.8 |
